Food Industrial Vertical 220v Z Type Bucket Elevator Conveyor

Product Categories
Chang Hong Mining Machinery Co., Ltd.
Contact Now

Food Industrial Vertical 220v Z Type Bucket Elevator Conveyor

  • 1
  • 2

Brand Name : Changhong

Model Number : Z Type

Certification : ISO,SGS,SONCAP

Place of Origin : Hebei,China

MOQ : 1 set

Price : USD980~2500/set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100sets/month

Delivery Time : 30 work days

Packaging Details : We use wooden cases or container packing to ensure safe transportation

Material : Stainless Steel,Carbon steel,PP bucket and ss304 frame or carbon steel frame

After-sales service provided : Video technical support,Online support

Dimension(l*w*h) : Customized Size

Color : As Your Requred

Usage : Residential Elevators,Higher Level

Lift drive / actuation : Electric Motor

Voltage : 220v/380v

Contact Now

China Supplier New Food Industrial Vertical Z Type Bucket Elevator Conveyor

It is made by 304 stainless steel frame and food class plastic ABS buckets.

The elevator is applicable for vertical lifting of grain material in departments such as corn, food, fodder and chemical

industry, etc.

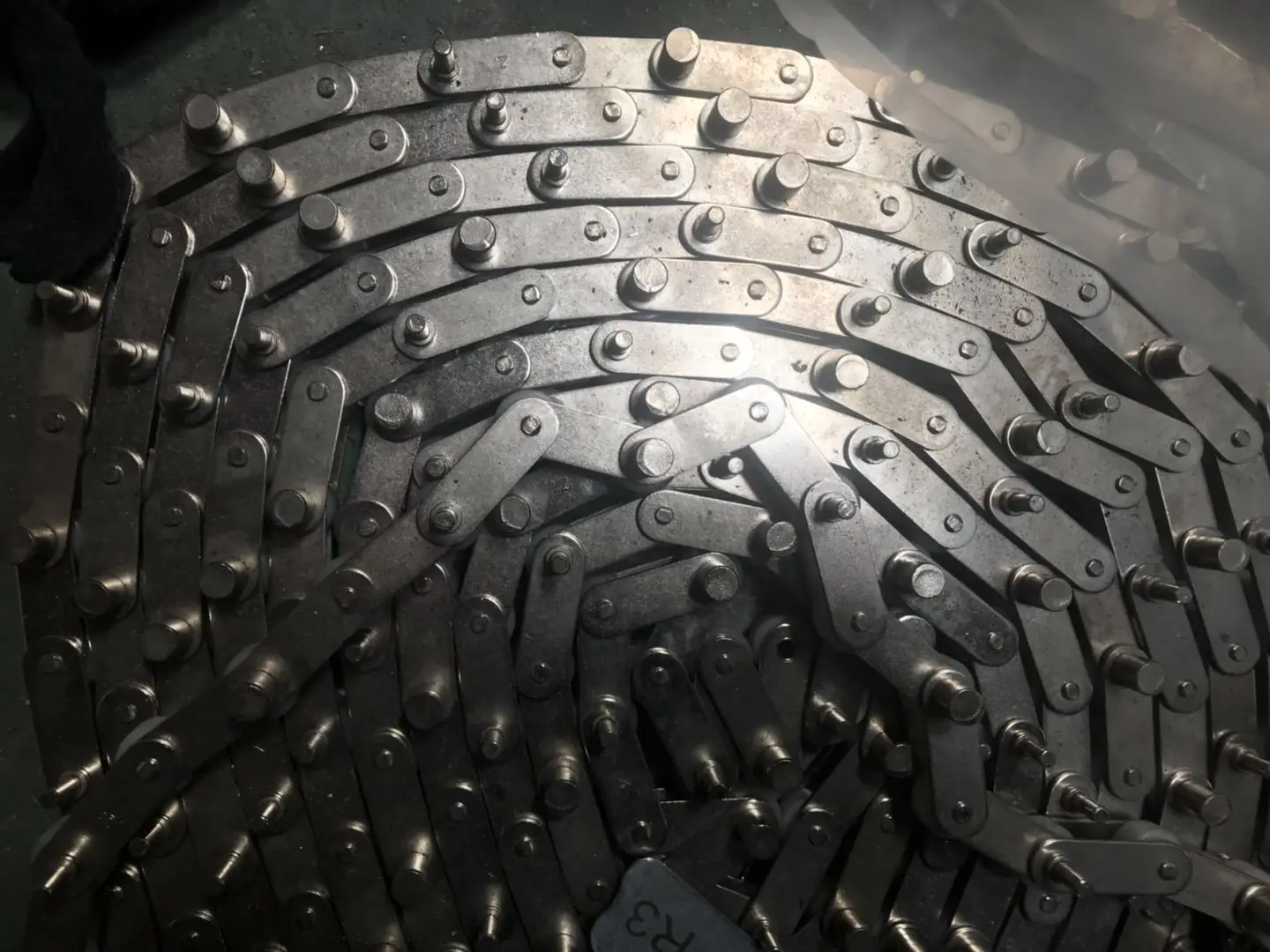

For the lifting machine, the hopper is driven by the chains to lift. It’s used for vertical feeding of grain or small block

material. It has advantages of large lifting quantity and highness.

The height of lifting: 360cm(the leg can adjust about 10cm height, so it can be 370cm height is total.

The discharging height will be about 310cm).

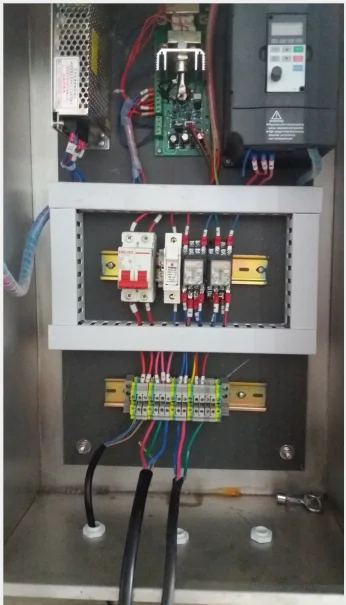

Conveyor speed controlled by inverter. Bucket movement controlled by level sensor.

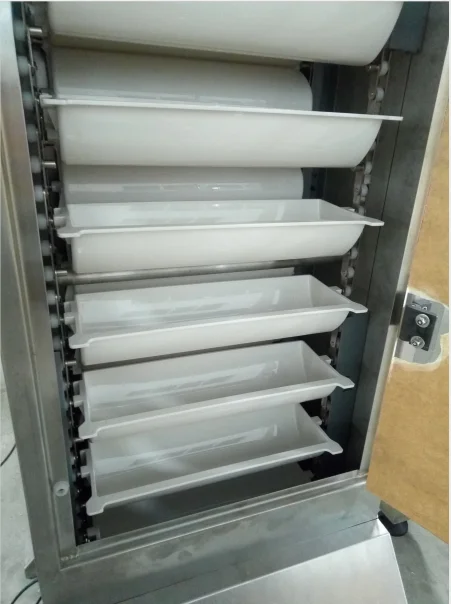

Speed: Max 90buckets/min, each bucket 1.8L

Combined type vibration material hopper: 70L

Power: 750W Voltage: 220V or 380V 3PHASE

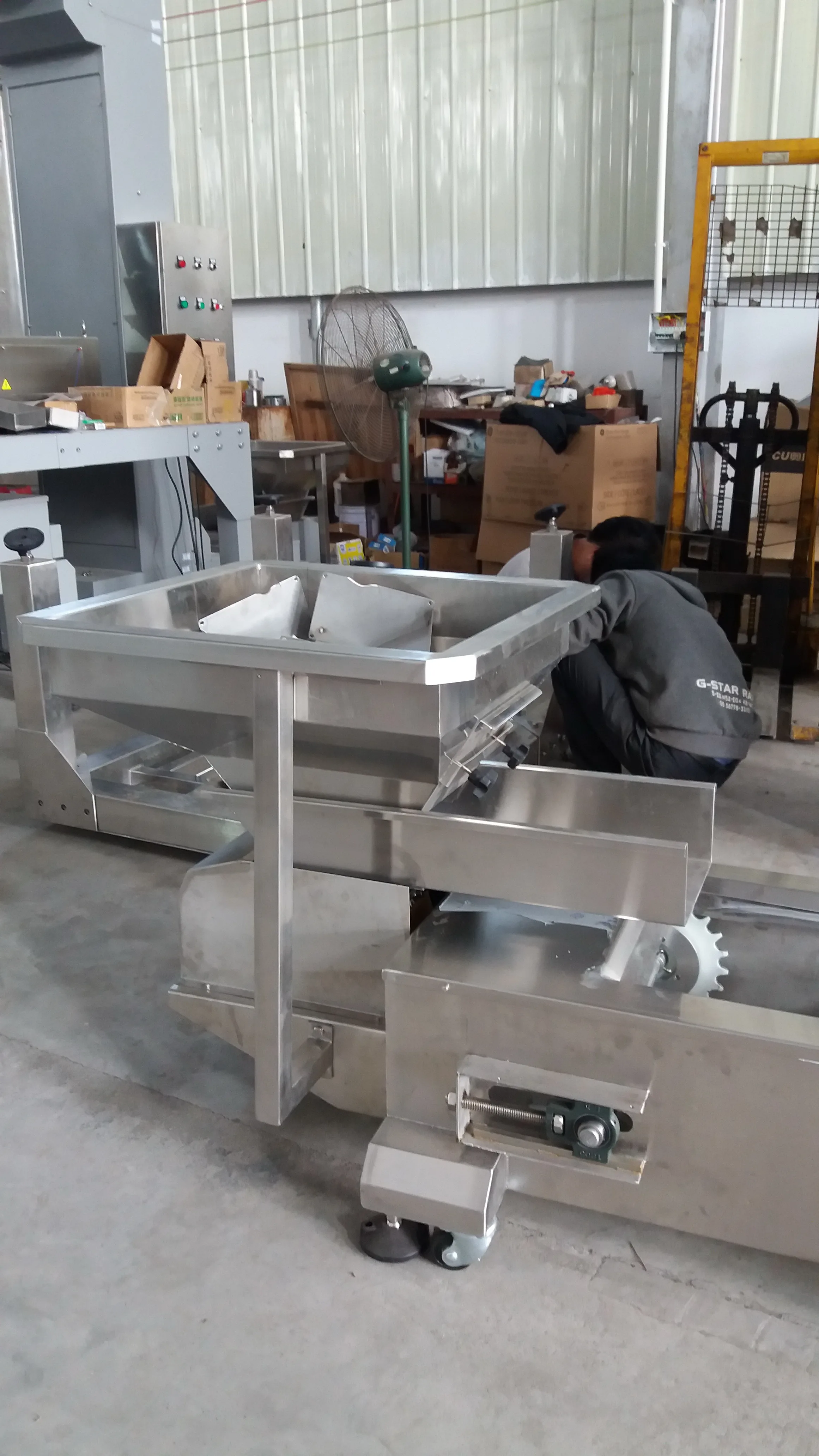

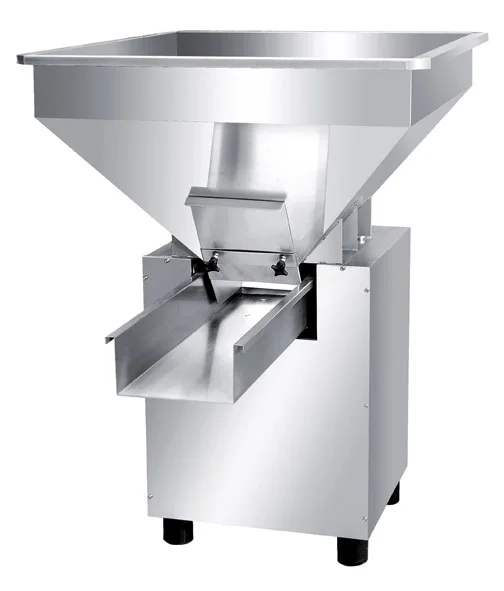

2 types of vibration feeder hopper for choose:

Food Industrial Vertical 220v Z Type Bucket Elevator Conveyor Food Industrial Vertical 220v Z Type Bucket Elevator Conveyor

Standard combined feeder hopper (70L) Separate feeder hopper (150L)

(70X70CM) (85x85cm, need to add money)

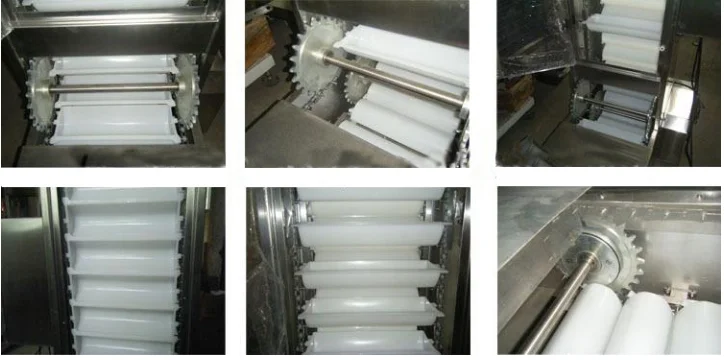

More details:

Food Industrial Vertical 220v Z Type Bucket Elevator ConveyorFood Industrial Vertical 220v Z Type Bucket Elevator Conveyor

Food Industrial Vertical 220v Z Type Bucket Elevator ConveyorFood Industrial Vertical 220v Z Type Bucket Elevator ConveyorFood Industrial Vertical 220v Z Type Bucket Elevator ConveyorFood Industrial Vertical 220v Z Type Bucket Elevator Conveyor



Technical Parameter:

Bucket volume 1.0L 1.8L 3.8L 6.5L

Output
2-3.5m3/h
4-6m3/h		 6.5-8m3/h 8.5-12m3/h
Bucket material PP, ABS, SS304, or other
Body material mild steel, stainless steel 304 or other
No. of the discharge port Single or Muti discharge port
Speed Adjustable or fixed
Voltage(v) 220V/50Hz, single phase
380V/50Hz, three phases
Or as required
