440v Stainless Steel Z Type Bucket Elevator 40 Meters Lifting Height
Continuous bucket elevators are used to handle powders, bulk solids or friable ,fragile materials because they minimize product damage or are used to handle light fluffy materials where aeration of the product must be avoided. Continuous bucket elevators have buckets spaced continuously and operate at slower speeds. The continuous bucket placement allows the force of gravity to discharge their load onto the inverted front of the proceeding bucket. The bucket then guides that material into the discharge throat on the descending side of the elevator.
Because every bucket application is unique,we offers a broad series of industrial elevator designs like Z type bucket elevator, C type bucket elevator etc. Selection of the proper type of bucket elevator depends largely on the capacity requirements and the characteristics of the material to be handled; which are depend upon customer's requirement too.
Description of Z Type Grain Chain bucket elevator lifting conveyor
Chain bucket elevator lifting conveyor is one of the most efficient ways to elevate bulk materials vertically. It consists of a
series of buckets attached to a belt or chain with pulleys or sprockets located at the top and bottom of the unit. The buckets are
located in a casing or housing to contain the material. Bulk materials are loaded into each bucket as the bucket moves past an
inlet point. We manufacture a wide variety of bucket elevators based on the characteristics of the bulk material and the process requirements.
Features of chain bucket elevator lifting conveyor
1. Completely enclosed for dust and weather-tight operation
2. The lifting height as requested
3. Obvious features such as low power required, effective inflow feeding or guiding discharge
4. Sealing condition could effectively reduces the environmental pollution.
5. Easy operation and maintenance, less vulnerable pieces
Advantages
A wide selection of replacement buckets is available.(stainless steel,PP,ABS,carbon steel)
· Easy installation and operate
· Energy saving
· The material is zero broken
· Heavy duty motor mount
· Adjustable chain
· Multipoint feeding and multipoiint unloading
· no raise dust,no leak
· Smooth running&quiet
| Sizing Table |
| | CHZD-3 | CHZD-6 | CHZD-10 | CHZD-15 | CHZD-20 | CHZD-25 | CHZD-30 | CHZD-35 |
| Transmit Mass | 100% | m3/h | 6 | 15 | 22 | 30 | 45 | 56 | 68 | 80 |
| 75% | 4.5 | 11 | 16.5 | 22.5 | 33.5 | 42 | 51 | 60 |
| Bucket | Volume | L | 3 | 6 | 10 | 15 | 20 | 25 | 30 | 35 |
| Width | mm | 370 | 470 | 870 | 500 | 560 | 690 | 815 | 940 |
| Distance | mm | 228.6 | 330 |
| Chain | QTY | -- | 2 |
| Pitch | mm | 38.1 | 66 |
| Single chain break loading(KN) minimum | 37.6 | 90 |
| Chain Wheel | Teeth QTY | -- | 26 | 22 |
| Pitch cercle diameter | mm | 316.09 | 463.76 |
| Bucket running speed | m/s | ≤0.3 | ≤0.25 |
| Transmission shaft revolution | r/min | ≤0.3 |
| Max elevating height | m | ≤45 |
| Max horizontal transport distance | m | ≤100 |
| Total Power | KW | 0.75-22 | 1.1-22 | 2.2-22 | 5.5-22 | 5.5-30 |
| Bucket Specification Size |
| Item | Width(mm) | Volume(L) | Size | CH3-10 Drawing |
| a | h | d(H12) | j | |
| CH3 | 370 | 3 | 235 | 120 | Φ13 | 20 |
| CH6 | 470 | 6 |
| CH10 | 870 | 10 |
| | CH15-35 Drawing |
| CH15 | 500 | 15 | 340 | 195 | Φ12 | 45 | |
| CH20 | 560 | 20 |
| CH25 | 690 | 25 |
| CH30 | 815 | 30 |
| CH35 | 940 | 35 |
Can be used in any form (according to customer requirements)
Free design for customers
Product Tags:
|
|

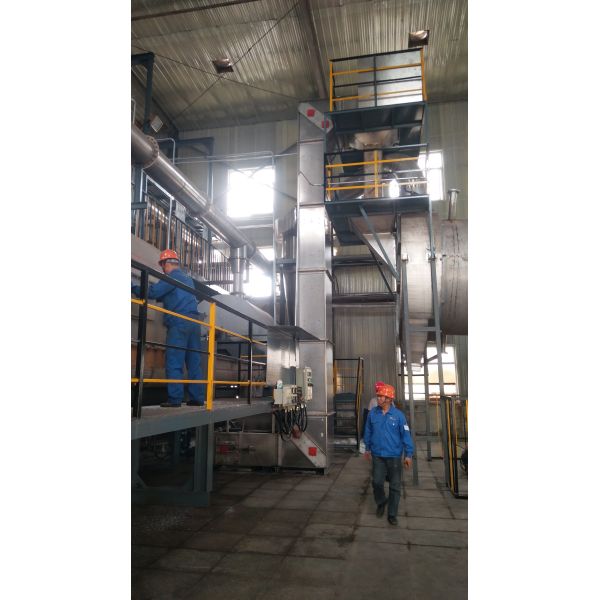

440v Stainless Steel Z Type Bucket Elevator 40 Meters Lifting Height Images
|
